  Hanol's Design Service
  By using the latest computer design tools and with specialized experience in heat exchanger design, HANOL, will provide
  not only qualified and cost effective heat exchanger design solution but also efficient solutions to special heat transfer
  problems for oil refinery, gas processing, petrochemical, power generation plant and other related industries.

  1. Design of Shell and Tube Type Heat Exchanger

  • Many trial solutions to find a qualified optimum design


  • Preparing exact Tube Layout at thermal rating stage    Cost-effective and compact design


  • Preparing Equipment Data Sheet in detail    Procurement, Manufacturing and construction within short period
    (Engineering Drawing can be eliminated)


  • Design Tools
    • HTRI
    • EXSIM (Heat Exchanger Simulation System)
    • EXGEN (Heat Exchanger Data sheet Generation System)
    • AutoCAD Data Sheet


  2. Design of Air Cooled Type Heat Exchanger

  • Many trial solutions to find a qualified optimum design


  • Fan Rating


  • Preparing Equipment Data Sheet (Excel Format) including Schematic Drawing


  • Design Tools
    • HTRI
    • EXSIM (Heat Exchanger Simulation System)
    • Excel Data Sheet


  3. Design Service for Special Heat Transfer Equipment

   HANOL will provide highly qualified design services for the Special Heat Transfer Equipment and other related systems
   of followings ;
  • Heat Recovery Steam Generator


  • Waste Heat Boiler, Superheater, Economizer


  • Surface Condenser (after steam turbine)


  • Inter and After Condenser (for steam jet ejector within vacuum system)


  • Feed Water Heater (H.P / L.P / D.H)


  • Inter and After Cooler (for gas compressing station)




  4. Design Service for Other Heat Transfer Equipment

   HANOL can provide design solution of shell and tube type exchanger for the following equipment.
   This design solution is more cost-effective compared with the equipment cost of specialized manufacturer.
  • Reflux Condenser
    Spiral-plate type, supplied by specialized manufacturer, is popular but shell and tube type design
    shall also be done so that performance and cost effective choice could be made.


  • Falling Film Evaporator
    HANOL can provide shell and tube type design solution, which makes it possible to purchase
    with lower cost without sacrificing any quality of this equipment.

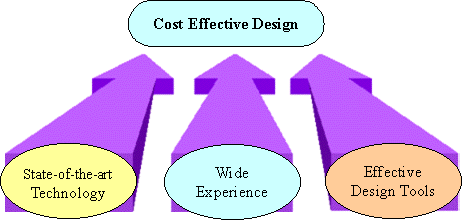

   DESIGN PROCESS   :
       Applying heat transfer technology    Optimized equipment design    Minimizing Equipment Cost



  5. Technical Support Service

   With HANOL specialists' considerable experience in debottlenecking, trouble shooting and revamping of heat exchanger,
   our experts can provide technical support services including ;
  • Field Trouble Shooting


  • Heat Transfer related Calculation, Design, and Development
